IV Cannula (Catheter)

Without Wings & Injection port

Product Features

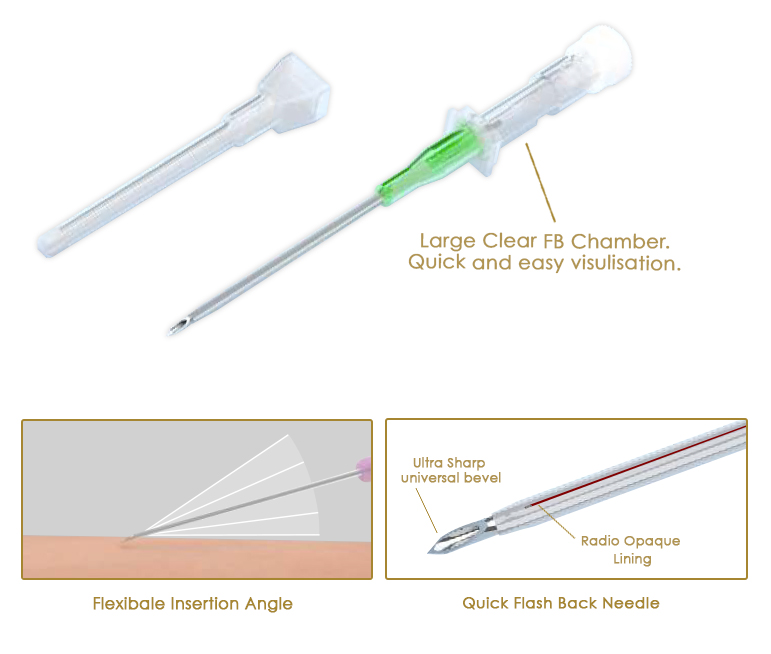

  1. Needle: Siliconized ultra sharp, multi-facet, stainless steel back cut, needle help clinician to perform easy and painless Veni puncture.
  2. Catheter: Available in FEP, PUR, and PTFE material. Siliconised with proprietary technology ensuring smooth surface and minimal discomfort for both patients and clinicians.
  3. Flashback Chamber: A large Flashback chamber allows quick visualization for successful veni puncture.
  4. Flexible Wings: The flexible small wings provide an effective grip and follow the site contours allowing secure fixation.
  5. Needle Cover: Transparent needle cover to prevent accidental damage to needle and catheter.
  6. Options Available: FEP/PTFE/PUR Catheter | Medical paper/Tyvek | Hydrophobic filter | Quick flash back needle Packing in Colour coded M.K.P | Sterile/ Non-pyrogenic/Single use.
Technical Specification
Size
Catheter OD (mm)
Catheter Length (mm)
Flow Rate (water) (ml/min)
Box Qty. Inner/Outer
14G
2.1
45
270
50/500
16G
1.8
45
200
17G
1.5
45
125
18G
1.3
45
90
20G
1.1
32
60
22G
0.9
25
36
24G
0.7
19
23
26G
0.6
19
15
Size
14G
Catheter OD (mm)
2.1
Catheter Length (mm)
45
Flow Rate (water) (ml/min)
270
Box Qty. Inner/Outer
50/500
Size
16G
Catheter OD (mm)
1.8
Catheter Length (mm)
45
Flow Rate (water) (ml/min)
200
Box Qty. Inner/Outer
50/500
Size
17G
Catheter OD (mm)
1.5
Catheter Length (mm)
45
Flow Rate (water) (ml/min)
125
Box Qty. Inner/Outer
50/500
Size
18G
Catheter OD (mm)
1.3
Catheter Length (mm)
45
Flow Rate (water) (ml/min)
90
Box Qty. Inner/Outer
50/500
Size
20G
Catheter OD (mm)
1.1
Catheter Length (mm)
32
Flow Rate (water) (ml/min)
60
Box Qty. Inner/Outer
50/500
Size
22G
Catheter OD (mm)
0.9
Catheter Length (mm)
25
Flow Rate (water) (ml/min)
36
Box Qty. Inner/Outer
50/500
Size
24G
Catheter OD (mm)
0.7
Catheter Length (mm)
19
Flow Rate (water) (ml/min)
23
Box Qty. Inner/Outer
50/500
Size
26G
Catheter OD (mm)
0.6
Catheter Length (mm)
19
Flow Rate (water) (ml/min)
15
Box Qty. Inner/Outer
50/500
