IV Cannula (Catheter)

With Small Wings & Without Injection port

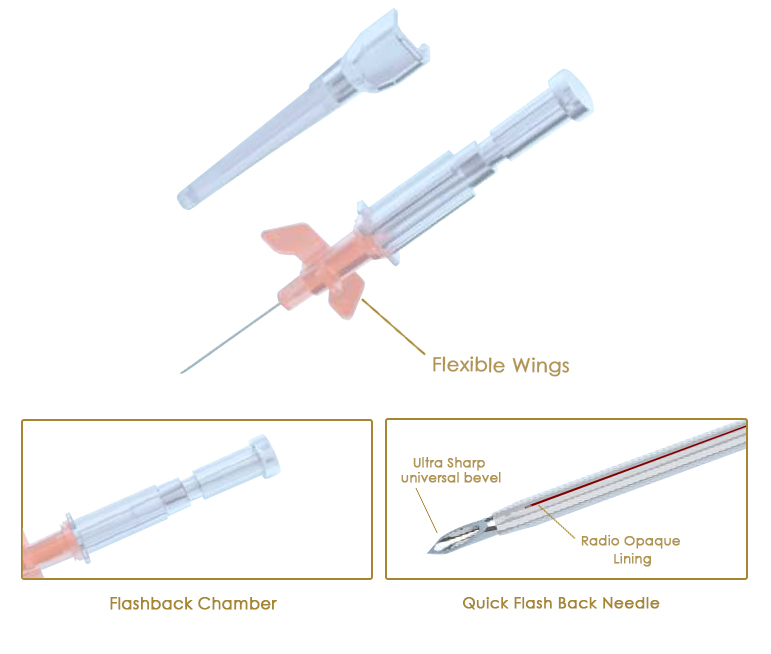

Product Features

  1. Needle: Siliconized ultra sharp, multi-facet, stainless steel back cut, needle help clinician to perform easy and painless Veni puncture.
  2. Catheter: Available in FEP, PUR, and PTFE material. Siliconised with proprietary technology ensuring a smooth surface and minimal discomfort for both patients and clinicians.
  3. Flashback Chamber: Flashback chamber allows quick visualization for successful veni puncture.
  4. Flexible Wings: The flexible small wings provide an effective grip and follow the site contours allowing secure fixation.
  5. Needle Cover: Transparent needle cover to prevent accidental damage to needle and catheter.
  6. Options Available: FEP/PTFE/PUR Catheter | Medical paper/Tyvek | Quick flashback needle Sterile/ Non-pyrogenic/Single use.
Technical Specification
Size
Catheter OD (mm)
Catheter Length (mm)
Flow Rate (water) (ml/min)
Box Qty. Inner/Outer
18G
1.3
45
90
100/1000
20G
1.1
32
60
22G
0.7
19
23
24G
0.6
19
15
Size
18G
Catheter OD (mm)
1.3
Catheter Length (mm)
45
Flow Rate (water) (ml/min)
90
Box Qty. Inner/Outer
100/1000
Size
20G
Catheter OD (mm)
1.1
Catheter Length (mm)
32
Flow Rate (water) (ml/min)
60
Box Qty. Inner/Outer
100/1000
Size
22G
Catheter OD (mm)
0.7
Catheter Length (mm)
19
Flow Rate (water) (ml/min)
23
Box Qty. Inner/Outer
100/1000
Size
24G
Catheter OD (mm)
0.6
Catheter Length (mm)
19
Flow Rate (water) (ml/min)
15
Box Qty. Inner/Outer
100/1000
