IV Cannula (Catheter)

With Wings & Without Injection port

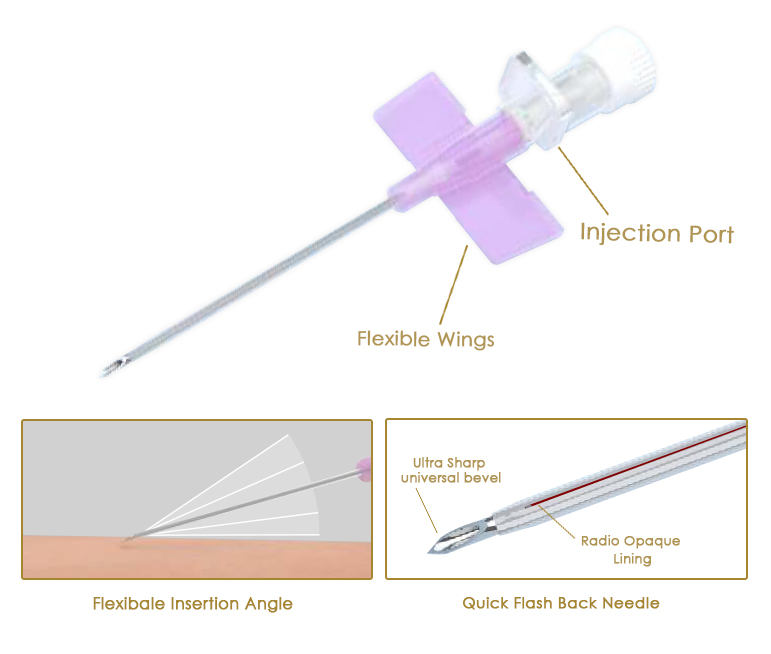

Product Features

  1. Needle: Siliconized, Ultra sharp, Stainless Steel, back-cut Japanese technology needle to perform easy and painless veni puncture.
  2. Catheter: Available in FEP, PUR, and PTFE material. Siliconized with proprietary technology ensuring smooth surface and minimal discomfort for both patient and clinician.
  3. Flashback Chamber: Flashback chamber allows quick visualizaton for successful veni puncture.
  4. Flexible Wings: The flexible wings provide an effective grip and follow the site contours allowing secure fixation.
  5. Needle Cover: Transparent needle cover to prevent accidental damage to needle and catheter.
  6. Options Available: FEP/PTFE/PUR Catheter | Medical paper/Tyvek | Hydrophobic filter Quick flashback needle | Sterile/Non-pyrogenic/Single use.
Technical Specification
Size
Catheter OD (mm)
Catheter Length (mm)
Flow Rate (water) (ml/min)
Box Qty. Inner/Outer
14G
2.1
45
270
50/500
16G
1.8
45
200
17G
1.5
45
125
18G
1.3
45
90
100/1000
20G
1.1
32
60
22G
0.9
25
36
24G
0.7
19
23
26G
0.6
19
15
Size
14G
Catheter OD (mm)
2.1
Catheter Length (mm)
45
Flow Rate (water) (ml/min)
270
Box Qty. Inner/Outer
50/500
Size
16G
Catheter OD (mm)
1.8
Catheter Length (mm)
45
Flow Rate (water) (ml/min)
200
Box Qty. Inner/Outer
50/500
Size
17G
Catheter OD (mm)
1.5
Catheter Length (mm)
45
Flow Rate (water) (ml/min)
125
Box Qty. Inner/Outer
50/500
Size
18G
Catheter OD (mm)
1.3
Catheter Length (mm)
45
Flow Rate (water) (ml/min)
90
Box Qty. Inner/Outer
100/1000
Size
20G
Catheter OD (mm)
1.1
Catheter Length (mm)
32
Flow Rate (water) (ml/min)
60
Box Qty. Inner/Outer
100/1000
Size
22G
Catheter OD (mm)
0.9
Catheter Length (mm)
25
Flow Rate (water) (ml/min)
36
Box Qty. Inner/Outer
100/1000
Size
24G
Catheter OD (mm)
0.7
Catheter Length (mm)
19
Flow Rate (water) (ml/min)
23
Box Qty. Inner/Outer
100/1000
Size
26G
Catheter OD (mm)
0.6
Catheter Length (mm)
19
Flow Rate (water) (ml/min)
15
Box Qty. Inner/Outer
100/1000
