Cannula

IV Cannula (Catheter)

With Automatic Activation (Spring Loaded)

Product Features

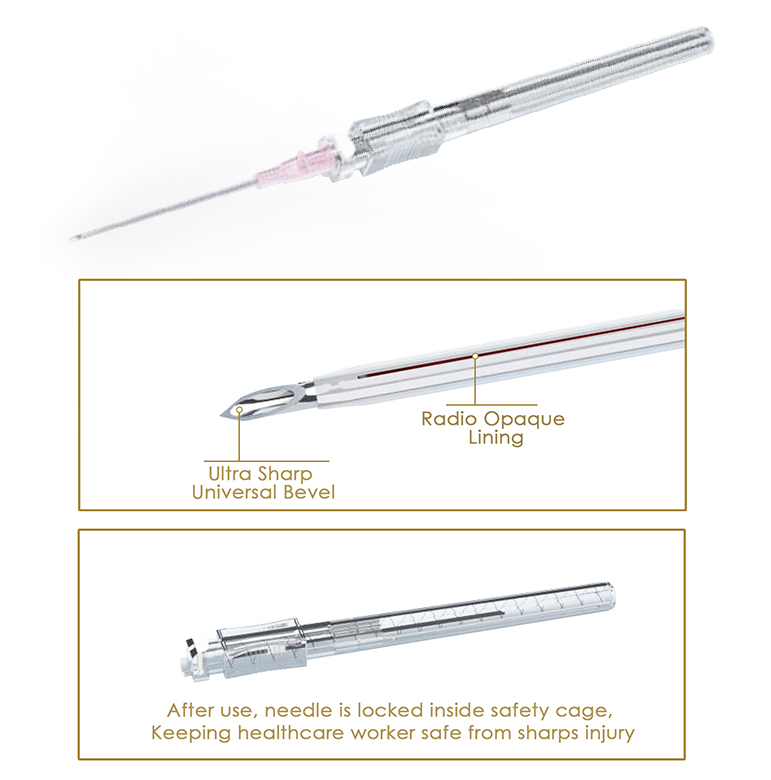

  1. Needle: Siliconized, Ultra sharp Stainless Steel back Japanese technology needle to perform smooth and atraumatic veni puncture.
  2. Ergonomic Auto activation mechanism: Activated by a simple button press needle is auto-retracted and locked inside the safety cage.
  3. Catheter: Available in FER PUR and PTFE material Siliconised with proprietary technology ensuring smooth surface and minimal discomfort for both patient and clinician.
  4. Flashback Chamber: A large FB chamber allows quick visualization for success.
  5. Ven-Puncture Needle Cover: Transparent needle cover to prevent accidental damage to needle and catheter.

Options Available

  1. FEP/PTFE/PUR Catheter | Medical paper/Tyvek | Hydrophobic filter | Quick flash back needle | Packing in Colour coded M.K.P | Sterile/Non Pyrogenic /Single use.
Technical Specification
Size
Catheter OD (mm)
Catheter Length (mm)
Flow Rate (water) (ml/min)
Box Qty. Inner/Outer
18G
1.3
45
90
50/500
20G
1.1
32
60
22G
0.9
25
36
24G
0.7
19
23
Size
18G
Catheter OD (mm)
1.3
Catheter Length (mm)
45
Flow Rate (water) (ml/min)
90
Box Qty. Inner/Outer
50/500
Size
20G
Catheter OD (mm)
1.1
Catheter Length (mm)
32
Flow Rate (water) (ml/min)
60
Box Qty. Inner/Outer
50/500
Size
22G
Catheter OD (mm)
0.9
Catheter Length (mm)
25
Flow Rate (water) (ml/min)
36
Box Qty. Inner/Outer
50/500
Size
24G
Catheter OD (mm)
0.7
Catheter Length (mm)
19
Flow Rate (water) (ml/min)
23
Box Qty. Inner/Outer
50/500
