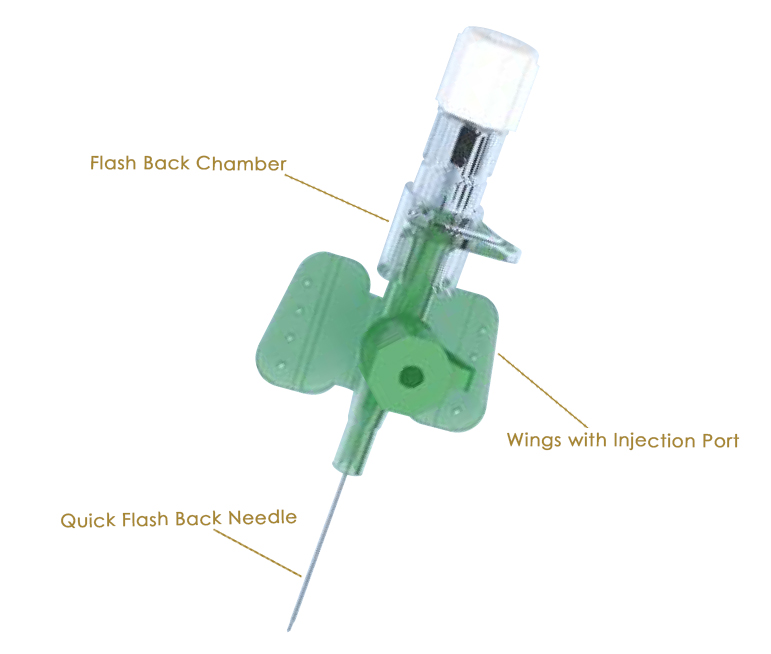

Cannula with Wings and Injection port

Safety IV Cannula (Catheter)

With Big Wings & Injection port

Product Features

  1. Passive safety device for protection from needle stick injury.
  2. Needle sharp tip is locked with a non-openable metal clip.
  3. The metal clip is designed to enclose the needle's sharp tip after the needle is withdrawn hence preventing healthcare professionals from the risk of accidental needle stick injury.
  4. Colored wing with suturable holes.

Options Available

  1. FEP/PTFE/PUR Catheter
  2. Hydrophobic filter
  3. Quick flashback needle
  4. Medical paper/ Tyvek
  5. Sterile/Non-pyrogenic / Single use
Technical Specification
Size
Catheter OD (mm)
Catheter Length (mm)
Flow Rate (water) (ml/min)
Box Qty. Inner/Outer
18G
1.3
45
90
50/500
20G
1.1
32
60
22G
0.9
25
36
24G
0.7
19
23
Size
18G
Catheter OD (mm)
1.3
Catheter Length (mm)
45
Flow Rate (water) (ml/min)
90
Box Qty. Inner/Outer
50/500
Size
20G
Catheter OD (mm)
1.1
Catheter Length (mm)
32
Flow Rate (water) (ml/min)
60
Box Qty. Inner/Outer
50/500
Size
22G
Catheter OD (mm)
0.9
Catheter Length (mm)
25
Flow Rate (water) (ml/min)
36
Box Qty. Inner/Outer
50/500
Size
24G
Catheter OD (mm)
0.7
Catheter Length (mm)
19
Flow Rate (water) (ml/min)
23
Box Qty. Inner/Outer
50/500
