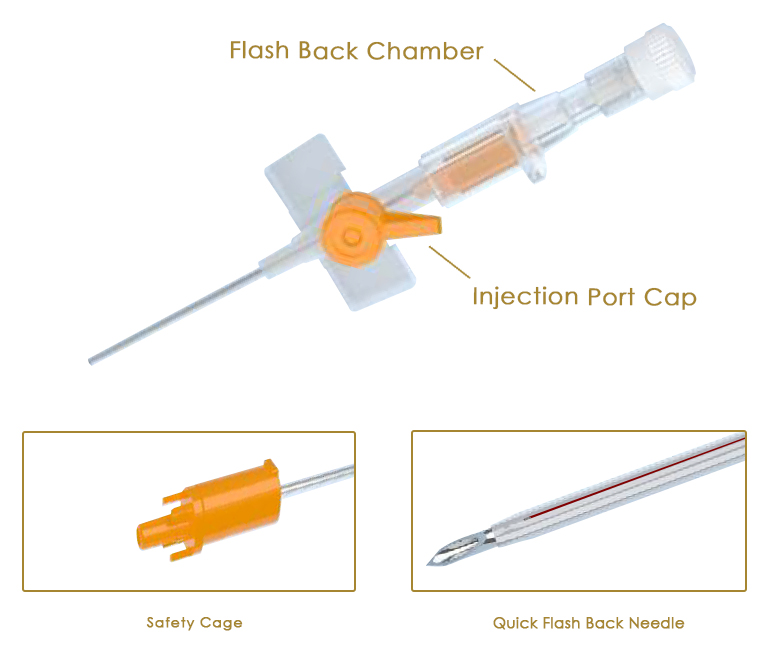

Cannula with Small wings and Injection Port

Safety IV Cannula (Catheter)

With Small Wings & Injection port

Product Features

  1. Passive safety device for protection from needle stick injury.
  2. Needle sharp tip is locked inside a plastic cage after use.
  3. The plastic cage is designed to enclose the needle's sharp tip after the needle is withdrawn hence preventing healthcare professionals from the risk of accidental needle stick injury.

Options Available

  1. FEP/PTFE/PUR Catheter
  2. Hydrophobic filter
  3. Flip port cap Quick flashback needle
  4. Medical paper/Tyvek
  5. Sterile/Non-pyrogenic/Single use
Technical Specification
Size
Catheter OD (mm)
Catheter Length (mm)
Flow Rate (water) (ml/min)
Box Qty. Inner/Outer
14G
2.1
45
270
50/500
16G
1.8
45
200
17G
1.5
45
125
18G
1.3
45
90
20G
1.1
32
60
22G
0.9
25
36
24G
0.7
19
23
Size
14G
Catheter OD (mm)
2.1
Catheter Length (mm)
45
Flow Rate (water) (ml/min)
270
Box Qty. Inner/Outer
50/500
Size
16G
Catheter OD (mm)
1.8
Catheter Length (mm)
45
Flow Rate (water) (ml/min)
200
Box Qty. Inner/Outer
50/500
Size
17G
Catheter OD (mm)
1.5
Catheter Length (mm)
45
Flow Rate (water) (ml/min)
125
Box Qty. Inner/Outer
50/500
Size
18G
Catheter OD (mm)
1.3
Catheter Length (mm)
45
Flow Rate (water) (ml/min)
90
Box Qty. Inner/Outer
50/500
Size
20G
Catheter OD (mm)
1.1
Catheter Length (mm)
32
Flow Rate (water) (ml/min)
60
Box Qty. Inner/Outer
50/500
Size
22G
Catheter OD (mm)
0.9
Catheter Length (mm)
25
Flow Rate (water) (ml/min)
36
Box Qty. Inner/Outer
50/500
Size
24G
Catheter OD (mm)
0.7
Catheter Length (mm)
19
Flow Rate (water) (ml/min)
23
Box Qty. Inner/Outer
50/500
